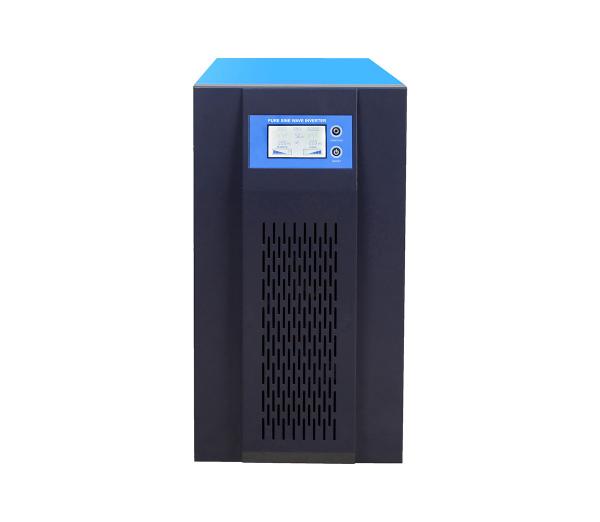

24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W

    Buy cheap 24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W from wholesalers

    Buy cheap 24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W from wholesalers
    • Buy cheap 24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W from wholesalers
    • Buy cheap 24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W from wholesalers

    24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W

    Ask Lasest Price
    Brand Name : Leeque
    Model Number : YQPD1000W/1500W/2000W/3000W
    Certification : CE&IEC
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000+pc+per month
    Delivery Time : 5-25days
    • Product Details
    • Company Profile

    24V 48V To 110V 220V 1kw Off Grid Solar Inverter 2000w 1500W

    Product Name:
    YQPD low frequency off Grid solar inverter 1000W12V,1500W12V/24V,2000W24V/48V,3KW24V/48V invert to 110V/220V,50/60Hz.
    Product certificate:
    CE&IEC
    Application area
    Domestic appliance:fan,lamp,rice cooker,etc.
    Office equipment:computers,printers,etc.
    Electronic tools:electri drill,punching machine,water pump,etc.
    Vehicle and Ship equipment:ambulances,ships,traffic lights,etc.
    Emergency power supply:standby power supply.
    Low frequency off Grid solar inverter can be used in notebooks,computers,digital cameras,TV,rice cookers,refrigeator,air conditioner,hand drills and other AC electrical appliances with total power not exceeding 1kw,1.5kw,2kw or 3kw.

    Product Description
    Feature

    1. Pure sine wave ouput low frequency toroidal transformer lower loss;
    2. LCD/LED&LCD real-time display working status;
    3. AC charging function,maximum charge current up to 15A,AVR AC output.
    4. Auto select working modes:AC first,battery first and energy-saving mode;
    5. RS232 communication port optional;

    PV Inverter Parameters

    Model:YQPDYQPD1000WYQPD1500WYQPD2000WYQPD3000W
    Rated Power1000W1500W2000W3000W
    Battery Voltage12VDC12VDC/24VDC24VDC/48VDC24V/48VDC
    Size(L*W*Hmm)360*210*380
    Packing Size(L*W*Hmm)420*280*445
    N.W.(kg)13141620
    G.W.(kg)(Carton Packing)14151721

    Parameter

    InputDC Input Voltage Range10.5VD-15VDC(Single battery voltage)
    AC Input Voltage Range85~138VAC/170~275AC
    AC Input Frequency Range45Hz~64Hz

    Output

    Efficiency≥85%
    Output Voltage(Battery Mode)110VAC±2%/220VAC±2%(Battery Mode)
    Output Frequency(Battery Mode)50Hzor 60Hz±1%
    Output Wave (Battery Mode)Pure Sine Wave
    AC Output Voltage Range110VAC±10%/220VAC±10%
    AC Output Frequency RangeTracking Automatically
    Transfer Time≤4ms
    Battery TypeAccording to Customer Requirements
    DisplayLCD
    AC Charging currentMax 15A
    Thermal methodCooling fan in intelligent control
    AC First(mains first with AC charging)
    Working ModeSaving Energy Mode(Load powers ≤10% machine turns off,≥11%-100% machine turns on)
    Battery First(When charging Battery voltage≥13V,turn converting mode;When converting:Battery voltage≤10.5V,turn mains mode)
    CommunicationRS232(Optional)
    ProtectionBattery low voltage alarm10.5VDC(Single battery voltage)
    Battery low voltage protection10VDC(Single battery voltage)
    Battery over voltage protection17V±0.5V(Single battery Voltage)
    Battery over voltage alarm15VDC-16VDC(Single battery voltage)
    Over power protection110% more than rated capacity
    Temperature protection≥85℃ alarm, ≥90℃ machine shut off
    EnviromentNoise≤55dB
    Temperature-10℃~40℃
    Humidity0~95%( No condensation)
    Note:All specifications are subject to charge without prior notice
