AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels

    Buy cheap AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels from wholesalers

    Buy cheap AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels from wholesalers
    • Buy cheap AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels from wholesalers

    AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels

    Ask Lasest Price
    Brand Name : Leeque
    Model Number : YQPSP10W-50W
    Certification : TUV,IEC61215,IEC61730,CE,PV CYCLE
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 5000+pcs+per month
    Delivery Time : 5-25days
    • Product Details
    • Company Profile

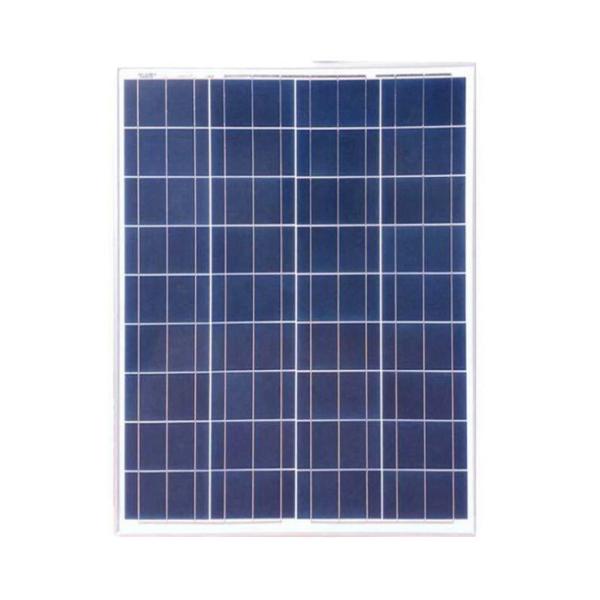

    AM1.5 12v 20w Solar Panel 50 Watt Polycrystalline Solar Panels

    YQPSP10W/20W/30W/40W/50W polycrytalline photovoltaic modules

    Polycrystalline photovoltaic modules 10W-50W

    Power:10W/20W/30W/40W/50W

    Certification:

    Rigorous quality control meeting the highest international standards;

    TUV,IEC61215,IEC61730,CE,PV CYCLE

    Introduction:

    Polycrystalline photovoltaic modules has high conversion efficiency and stable output performance.

    Product Description:

    1. High-transmissivity low-iron temperature glass,strong aluminium frame using UV-resistant silicon;
    2. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies;
    3. High quality,strong aluminium frame,passing mechanical load testing 5400Pa and wind pressure 2400Pa;
    Polycrystalline Photovoltaic Modules Parameter
    ModelYQPSP10WYQPSP20WYQPSP30WYQPSP40WYQPSP50W
    Maximum Power at STC(Pmax)10W20W30W40W50W
    Optimum Operating Voltage(Vmp)17.5V17.5V17.5V19.5V17.5V
    Optimum Operating Current(lmp)0.57A1.14A1.14A2.05A2.86A
    Open-Circuit Voltage(Voc)21.18V21.18V21.18V23.60V21.18V
    Short-Circuit Current(Isc)0.62A1.23A1.23A2.22A3.09A
    Solar Cell Efficiency(%)15.5716.2016.2016.8017.20
    Dimension(mm)290*350*17480*350*25430*540*25410*670*25540*670*25
    PackingCarton box
    Working Temperature-40℃ ~ 85℃
    Maximum system voltageDC600V
    Max system current15A
    Power Tolerance± 3%
    STC1000W/㎡,25℃,AM1.5
