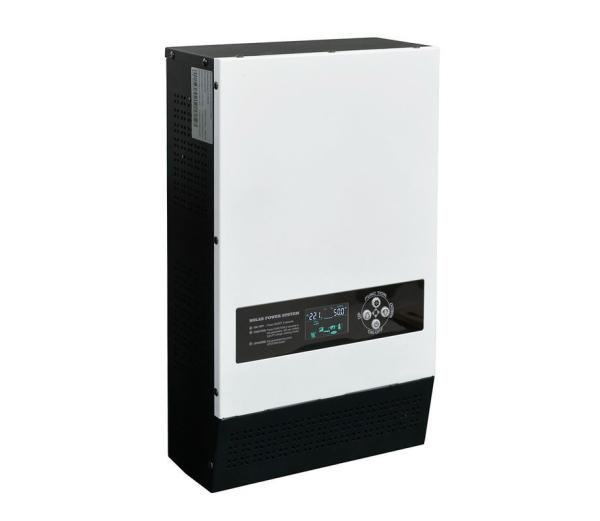

LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter

    Buy cheap LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter from wholesalers

    Buy cheap LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter from wholesalers
    • Buy cheap LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter from wholesalers

    LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter

    Ask Lasest Price
    Brand Name : Leeque
    Model Number : YQLS4000W/5000W/6000W
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000+pcs+per month
    Delivery Time : 5-25days
    • Product Details
    • Company Profile

    LCD 4000W 5000W 6000W 24V Off Grid Solar Inverter 4kw Off Grid Solar Inverter

    YQLS 4000W/5000W/6000W Solar pump inverter

    Product certificate:

    CE&IEC

    Application area

    Solar pump inverter are suitable for off-grid solar power systems,which convert direct current to alternating current and provide the most attractive water supply style in remote areas without electricity.

    Product Description

    Feature

    1. Pure sine wave ouput low frequency inverter;
    2. AC charge current 0-30A adjustable;
    3. Low frequency toroidal transformer increase efficiency;
    4. Intelligent LCD integration display;
    5. Peak power more than 3times,full-automatic and perfect protection function;
    6. Added fault code query function,easy to monitor the operation in real time;
    7. Supports diesel or gasoline generator,adapt anytough electricity situation;
    8. Combine industrial and home usage,wall-mounted design ,convenient installation.

    Low Frequency Inverter Parameters

    Model:YQLSYQLS4000WYQLS5000WYQLS6000W
    Rated Power4000W5000W6000W
    Battery Voltage24V/48VDC48VDC
    Size(L*W*Hmm)510*320*130
    Packing Size(L*W*Hmm)585*415*225
    N.W.(kg)21.523.525.5
    G.W.(kg)(Carton Packing)232527
    Parameter
    InputDC Input Voltage Range10.5-15VDC(Single battery voltage)
    AC Input Voltage Range85VAC~138VAC/89V~144VAC/93V~150VAC/170~275VAC/178V~288VAC/186V~300VAC
    AC Input Frequency Range45Hz~65Hz

    Output

    Efficiency≥85%
    Output Voltage(Battery Mode)110VAC±2%/115VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
    Output Frequency(Battery Mode)50/60Hz±1%
    Output Wave(Battery Mode)Pure Sine Wave
    AC Output Voltage Range110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
    AC Output Frequency RangeTracking Automatically
    Working ModeBattery First/AC First/Saving Energy Mode
    AC Charging current(selectable)0~30A

    Battery Type(selectable)


    LEADCharge Voltage:14V;Float Voltage:13.8V(Single battery voltage,×2 for 24V; ×4 for 48V)
    OP-LECharge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage×2 for 24V; ×4 for 48V)
    LITHIUMCharge Voltage:13V;Float Voltage:12.6V(Single battery voltage×2 for 24V; ×4 for 48V)
    RemarkThe charging parameters of other types battery can be user-defined
    Transfer Time≤4ms
    DisplayLCD
    Thermal methodCooling fan in intelligent control
    ProtectionOver-load/Over-discharge/Short circuit/High temperature/Reverse Polarity
    CommunicationRS232/RS485 (Optional)
    EnviromentNoise≤55dB
    Temperature-10℃~40℃
    Humidity0~95%( No condensation)
    Note:All specifications are subject to charge without prior notice
